Grinding   Turning

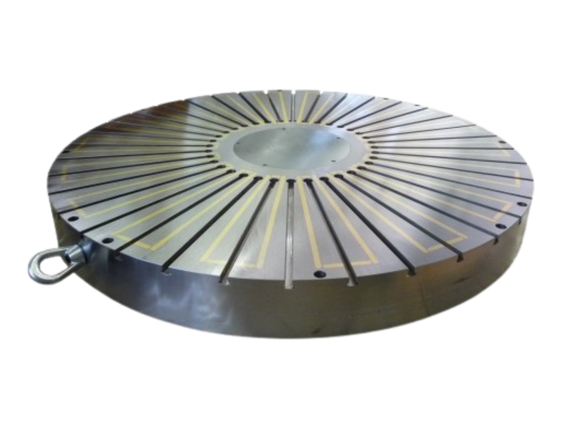

  • Electro-permanent radial pole circular chuck with high holding force
  • Space between the poles filled with brass
  • For ring-shaped work pieces
  • Suitable for grinding and turning operations
  • Corresponding Control Unit and Remote Control to be ordered separately (see 50.03.BUP.400 / 50.03.BUP.230 and 50.10.T10)

Included with purchase:
- Electric connection at the rear of the chuck
- With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle)

Normal force: 140 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 340 VDC

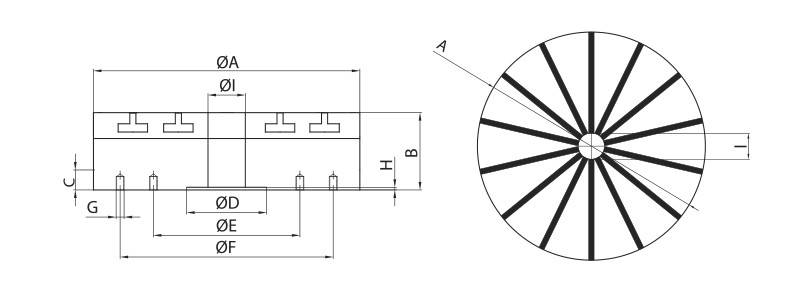

Technical Drawing - Electro-Permanent Circular Chuck type EPERC
LIBELLÉ Poids Kg A B C D E F G H I J
11.14.150.6.340 9,0 150 90 14 - - - 3xM10 4 35 6
11.14.200.8.340 18,0 200 90 14 - - - 4xM10 4 45 8
11.14.250.8.340 29,0 250 90 16 - - - 4xM12 4 65 8
11.14.300.12.340 42,0 300 90 16 - - - 4xM12 4 85 12
11.14.400.12.340 76,0 400 90 16 - - - 6xM12 5 100 12
11.14.500.16.340 120,0 500 90 16 - - - 6xM12 5 150 16
11.14.600.16.340 195,0 600 100 18 - - - 6xM16 5 180 16
11.14.700.16.340 265,0 700 100 18 - - - 6xM16 5 200 16
11.14.800.24.340 365,0 800 100 18 - - - 6xM16 5 200 24
11.14.1000.24.340 550,0 1000 100 18 - - - 8xM16 5 250 24
